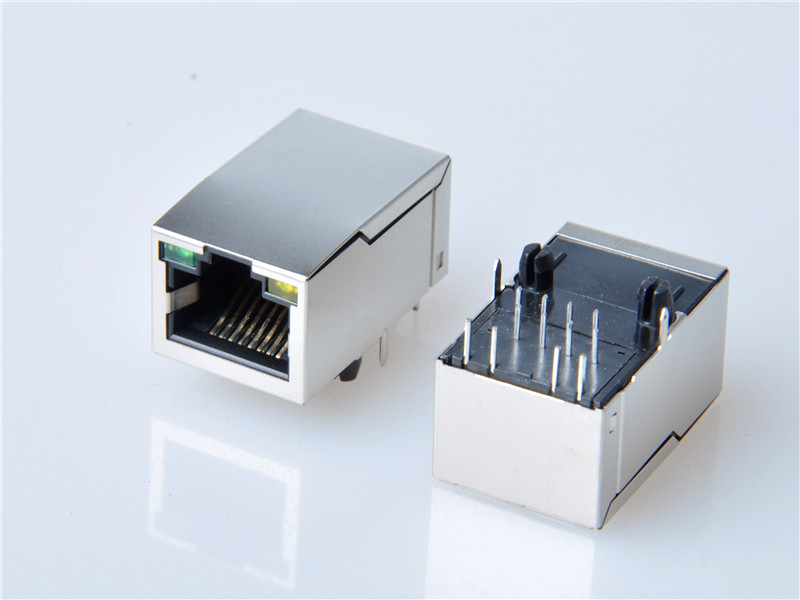

    RJ45 Modular Jack Connector, Through Hole Type, Transformer, with LED,Side Entry, 10/100 Mbps

    Ask Lasest Price
    Brand Name : HULYN
    Model Number : HRC1-XXXXXX
    Certification : UL,CE,FCC,REACH
    Price : USD-0.1-5.0
    Payment Terms : D/P, D/A, L/C, T/T, Western Union
    Supply Ability : 100000pcs
    Delivery Time : 2-3days
    • Product Details
    • Company Profile

    RJ45 Modular Jack Connector, Through Hole Type, Transformer, with LED,Side Entry, 10/100 Mbps

    Electrical Characteristic:
    Insulation Resistance:
    500 MΩ Min.
    Contact Resistance:
    50 mΩ Max.
    Withstand Voltage:
    1000 VAC
    Current Rating:
    1.5 Amperes
    Material:
    Housing:
    Thermoplastic UL94V-0
    Contact:
    Selective Gold Plating
    Terminal:
    0.35 mm Thick Gold Plated Contacts with Tin Plated Solder Area
    Shield:
    Nickel Plated Brass

    Description:

    10/100/1000Base-TX RJ45 1x1 Tab-UP Integrated Magnetics Connector,

    designed to support high volume cost-conscious consumer applications such as:

    ADSL modems, Cable modems, STB and Video on Demand.

    Features and Benefits:

    RoHS peak wave solder temperature rating 260°C

    Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP

    Meets IEEE 802.3 specification

    350μH minimum OCL with 8mA bias current

    High performance for MAX EMI suppression for cost-conscious applications
