1000BASE

Ask Lasest Price
Brand Name :	HUILY
Model Number :	HLJ-9118ANLF
Price :	usd0.8/pcs
Delivery Time :	5-7day
Payment Terms :	COD
Supply Ability :	10000000PCS

Add to Cart

Product Details
Company Profile

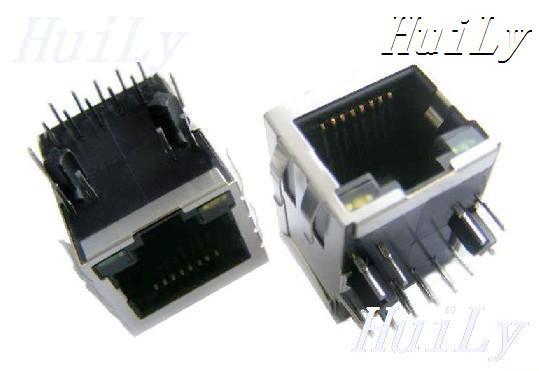

RJ45+transformer 10/100/1000BASE

Insertion Loss: 1-100MHZ -1.0dB MAX
Return Loss: 1-30MHZ -16.0dB MIN
30-60MHZ -12.0dB MIN
60-80MHZ -10.0dB MIN
Crosstalk: 1-30MHZ -40.0dB MIN
30-60MHZ -35.0dB MIN
60-100MHZ -30.0dB MIN
CMR: 1-50MHZ -30.0dB MIN
50-150MHZ -20.0dB MIN
Hipot:1500V AC 6S 1mA
OCL:350uH MIN @ 100KHZ 100mV 8mA DC
